Amplifiers are used to strengthen weak signals so they can be processed in electronic systems. Different types of amplifiers are designed for different tasks based on signal level, noise, and accuracy. This article compares operational, differential, and instrumentation amplifiers to help you understand when to use each one.

Catalog

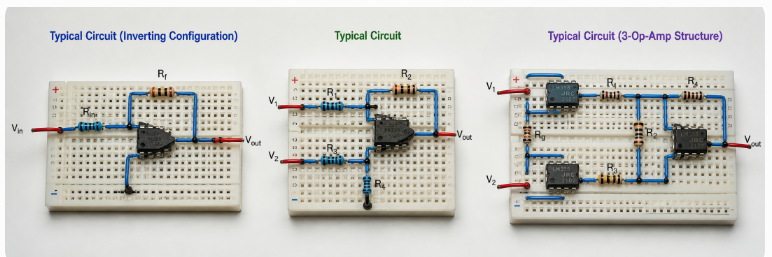

Types of Amplifiers

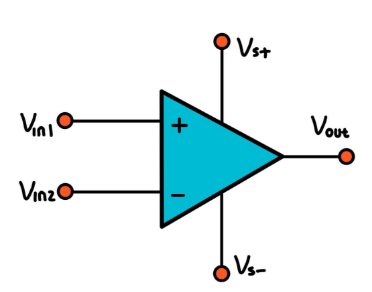

Figure 2. Op-Amp with Two Inputs and One Output

1. Operational Amplifier (Op-Amp)

An operational amplifier (op-amp) is a versatile, general-purpose amplifier used in a wide range of analog applications.

V_out = A(V⁺ − V⁻)

It amplifies the difference between two input signals and is commonly used for signal amplification, filtering, buffering, and comparator circuits.

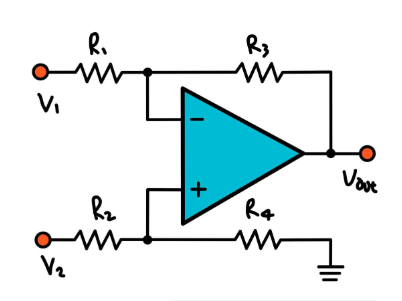

Figure 3. Differential Amplifier Circuit with Resistor Network

2. Differential Amplifier

A differential amplifier amplifies the difference between two input signals while rejecting noise common to both inputs.

V_out = A_d(V_₂ − V_₁)

It is commonly used in current sensing, ADC input stages, and industrial signal processing applications.

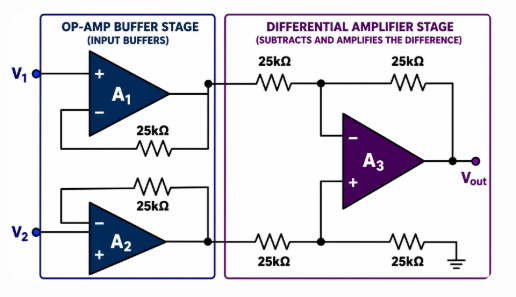

Figure 4. Instrumentation Amplifier with Input Buffers and Differential Stage

3. Instrumentation Amplifier

An instrumentation amplifier is designed for precise measurement of very small signals in noisy environments.

G = 1 + (2R / R_g)

It provides very high input impedance, high accuracy, and excellent noise rejection. It is commonly used in sensor interfaces, medical devices such as ECG systems, and industrial measurement systems.

How Each Amplifier Operates

An op-amp uses internal amplification stages with external feedback to control its output.

A differential amplifier’s accuracy depends on resistor matching.

An instrumentation amplifier uses buffer stages followed by a differential stage to provide stable and accurate output.

Practical Design Considerations

Op-Amp: It uses external resistors and capacitors to set its behavior, but its performance is sensitive to circuit layout.

Differential Amplifier: It requires closely matched resistors for proper operation, since any mismatch can reduce accuracy.

Instrumentation Amplifier: Its gain is set by a single resistor, and its internally matched components make it more stable.

Input and Output Characteristics

Parameter	Op-Amp	Differential Amplifier	Instrumentation Amplifier
Input Impedance	Medium to high	Medium	Very high
Output Behavior	Configurable output	Outputs signal difference	Stable and precise output

Gain and Performance

Op-Amp- Gain is set by external components and may vary with resistor tolerance and temperature.

Differential Amplifier- Gain depends on resistor ratios, offering improved accuracy over basic op-amp configurations.

Instrumentation Amplifier- Gain is set using a single resistor and is stable.

Noise Rejection and CMRR

CMRR=A_d/A_c

CMRR (Common-Mode Rejection Ratio) indicates how effectively an amplifier rejects noise that is common to both input signals.

Higher CMRR means better ability to eliminate unwanted noise and improve signal accuracy.

Amplifier	Noise Rejection	Typical CMRR
Op-Amp	Basic	Moderate
Differential	Good	60–100 dB
Instrumentation	Excellent	100–140 dB

Practical Examples

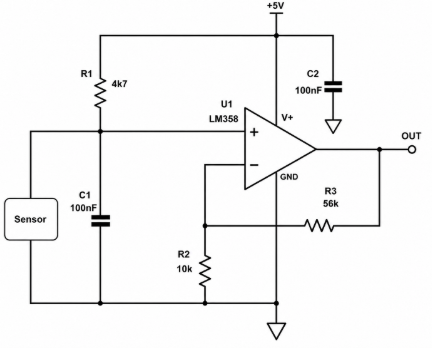

Figure 5. LM358 Op-Amp Amplifying Sensor Signal for ADC Input

Op-Amp: LM358

It is used to amplify small sensor signals, such as those from temperature sensors, allowing the signal level to better match the input range of an ADC. By scaling the signal appropriately, it improves measurement resolution while keeping the overall system cost low.

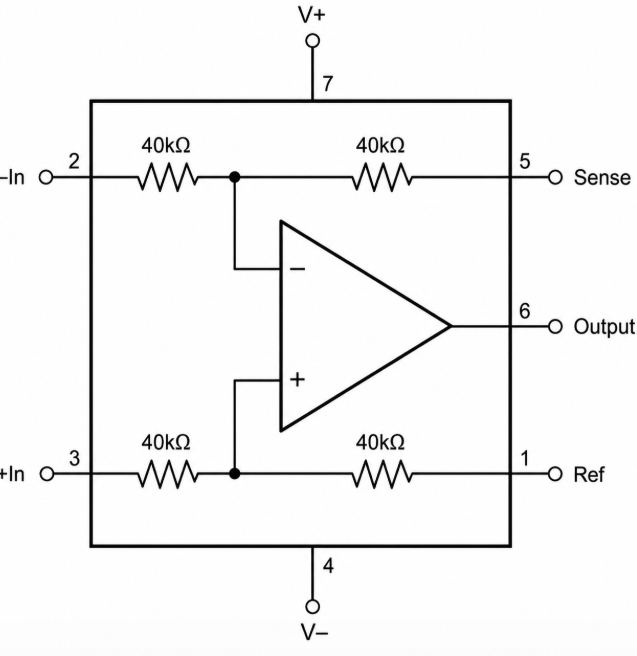

Figure 6. INA132 Differential Amplifier for Accurate Current Sensing

Differential Amplifier: INA132

It measures the voltage across a shunt resistor and is commonly used in current sensing applications. By focusing on the voltage difference, it helps reduce the effect of electrical noise, resulting in more accurate measurements.

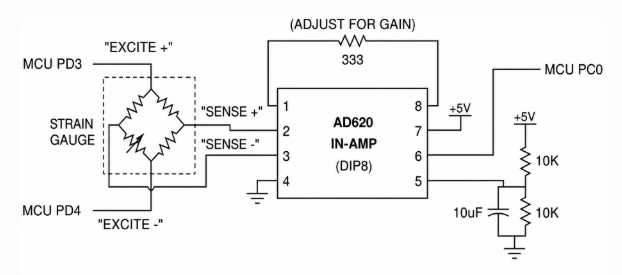

Figure 7. AD620 Amplifies Strain Gauge Signals for Precise Measurement

Instrumentation Amplifier: AD620

It amplifies low-level signals, such as those from strain gauges, before they are sent to an ADC for conversion. This ensures that even tiny signal changes are captured accurately, resulting in stable and precise readings.

Device	Role	Strength	Trade-off
LM358	General amplification	Low cost	Lower precision
INA132	Signal comparison	Noise reduction	Fixed gain
AD620	Precision measurement	High accuracy	Higher cost

Amplifier Selection and Comparison

Choosing the right amplifier depends on signal level, noise conditions, and accuracy requirements. Each amplifier type is suited for specific applications based on its performance characteristics.

Op-Amp: Best for simple applications with clean, medium to strong signals where low cost and flexibility are important.

Differential Amplifier: Suitable for comparing two signals in environments with moderate noise.

Instrumentation Amplifier: Ideal for low-level signals that require high accuracy and strong noise rejection.

Feature	Op-Amp	Differential Amplifier	Instrumentation Amplifier
Signal Level	Medium to strong	Moderate	Low-level
Noise Rejection	Basic	Good	Excellent
Precision	Moderate	Moderate	High
Design Complexity	Sensitive to layout	Requires matched resistors	Stable with internal matching
Cost	Low	Medium	High

Common Design Mistakes

Op-Amps

• Using wrong supply voltage - limited output range

• Ignoring input bias current - measurement errors

• Using low-speed op-amps for fast signals - distortion

Differential Amplifiers

• No input protection - damage from voltage spikes

• Poor grounding - unstable output

• Placing too far from source - increased noise

Instrumentation Amplifiers

• Poor power supply - reduced accuracy

• Ignoring offset voltage - shifted readings

• Skipping calibration - long-term errors

• Overusing them when not needed - leads to increased cost

Conclusion

Op-amps, differential amplifiers, and instrumentation amplifiers each serve different purposes in signal processing. Choosing the right one depends on the required accuracy, noise handling, and cost. Understanding their differences helps in designing more reliable and efficient systems.
